Continental Motorsport ABS for Racing, Track & Time Attack
Continental Motorsport ABS is a professional race ABS system engineered for high-performance track cars, time attack builds, and endurance racing. Designed specifically for motorsport use, it delivers maximum braking performance, consistent wheel slip control, and exceptional stability under extreme deceleration.
Every system is supplied with a bespoke vehicle-specific calibration, ensuring optimal performance across different drivetrain layouts, chassis configurations, brake systems, tyres, and aerodynamic loads.
This is a true racing ABS, not a modified road-car system.

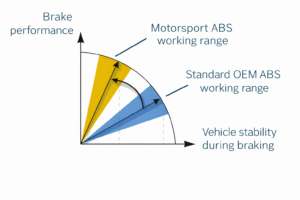

Why You Need a Motorsport ABS on a Track Car
- Designed specifically for racing: Motorsport ABS is engineered for high deceleration rates, slick and semi-slick tyres, large brake systems, and sustained track use — conditions where road-car ABS systems are not optimised.
-
Maximum braking efficiency: By continuously controlling wheel slip at the tyre’s optimal grip point, motorsport ABS allows the driver to brake later and harder without wheel lock-up.
-
No “ice mode” behaviour: Unlike many production ABS systems, a true racing ABS does not reduce or disable intervention at low wheel speeds, eliminating unpredictable braking response and ensuring consistent control all the way to corner entry.
-
Improved stability under braking: Controlled brake pressure modulation increases vehicle stability during threshold braking and trail braking, especially at high speed and under aerodynamic load.
-
Higher corner entry speed: Stable, repeatable braking enables smoother transitions into the corner, increasing minimum entry speed and improving overall lap flow.
-
Reduced lap time: The combination of shorter braking distances, later braking points, and increased confidence typically results in a measurable lap time reduction, commonly in the range of ~0.5–1.0 seconds per lap, and up to ~2.0 seconds per lap on braking-intensive circuits.
-
Consistency over a session: Motorsport ABS maintains braking performance despite tyre wear, heat buildup, and changing grip, reducing lap-time drop-off over long stints.
-
Tyre protection: Minimising wheel lock-up reduces flat-spotting and uneven wear, helping maintain peak lap time for longer.
Bespoke Vehicle Calibration (Included)
Each Continental Motorsport ABS system is individually calibrated to the specific vehicle it will be installed on.
Calibration parameters include:
-
Drivetrain layout: FWD / RWD / AWD
-
Engine & chassis layout: Front Engine / Mid Engine
-
Wheelbase, track width and vehicle mass
-
Front / rear weight distribution
-
Tyre size, compound and construction
-
Brake system specifications:
-
Caliper piston sizes
-
Disc diameter and thickness
-
Pad friction characteristics
-
-
Aerodynamic load compensation
This ensures correct brake pressure modulation and slip targets matched precisely to the vehicle’s dynamics.
Both GT and GT3 specifications include bespoke calibration as standard.
Available Specifications
GT – Motorsport ABS
A professionally calibrated, fixed-map race ABS system designed for simplicity, predictability, and consistency.
-
Bespoke vehicle-specific calibration included
-
Fixed motorsport brake control strategy
-
Optimised for track days, sprint racing, club racing and time attack
-
Excellent performance with slicks and semi-slick tyres
-
No in-car adjustment required
- No external brake pressure sensors required
- Input brake pressure logging over CAN
Ideal for drivers seeking a set-and-forget motorsport ABS with maximum braking confidence.
GT3 – Motorsport ABS
An advanced racing ABS system with driver-adjustable brake maps, designed for high-level motorsport.
-
Bespoke vehicle-specific base calibration included
-
10 In-car adjustable ABS maps via rotary switch
- Tire size configurable via CAN
-
Faster processing and enhanced wheel speed resolution
-
Superior control under high aero load and extreme deceleration
-
Designed for GT-level, endurance and aero-dependent race cars
- No external brake pressure sensors required
- Input / 4-wheel output brake pressure logging over CAN
The GT3 specification allows real-time adaptation to tyre wear, grip changes, weather conditions, and driving style.
| Feature | GT | GT3 |
|---|---|---|
| Vehicle-Specific Calibration | Included | Included |
| ABS Maps | Fixed | Driver-Adjustable |
| Processing Speed | High | Very High |
| Wheel Speed Resolution | Motorsport Grade | Enhanced |
| High-Aero Stability | Very Good | Excellent |
| Intended Use | Track / Club | Track / Racing/ Time attack |
Kit Contents
Each Motorsport ABS kit includes:
-
Continental Motorsport ABS unit
- Yaw sensor
-
Wheel speed sensors (optional)
-
Pre-made motorsport wiring harness (optional)
-
VR wheel speed sensor signal converter (optional)
Integration & Compatibility
-
Completely standalone
-
CAN-based motorsport data logging support (500kbps/1mbps configurable)
-
Works with racing pedal boxes and balance bars, as well as OEM brake systems
-
Suitable for high-pressure motorsport brake systems
Professional installation required. Competition use only.
Lead Time
-
Build-to-order with bespoke calibration
-
Typical turnaround: ~3 weeks from order confirmation
Motorsport ABS – Key Benefits
-
Shorter, more repeatable braking distances
-
Improved stability during trail braking
-
Reduced wheel lock and tyre flat-spotting
-
Greater confidence at the braking limit
-
Consistent performance over long stints
